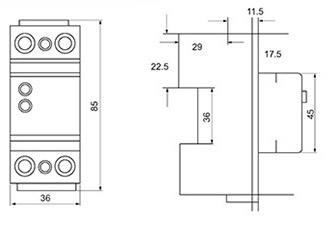

Dimension
Product Description
CHQ3 -g wide (36) since the compound rolling owed protector is my company according to the current state of the grid development of a new generation of home appliance protection device. Control circuit USES imported components assembly, with modular products production standards, excellent performance, reliable. Able to work under the condition of abnormal voltage is normal. When the mains voltage more than protector, protector can quickly and reliably to cut off the power supply, to protect electrical safety. When mains voltage return to normal, the protector can be automatically switched on the power, to restore power, all functions automatically, need not operation. Turn on the front panel led can work instructions protector. Light green is working voltage indicator, indicator light red light not bright when the normal power supply and protection function start, when the red light to cut off the power supply. This series of products, compact structure, beautiful appearance, installation and DZ47 (C45) guide gm.

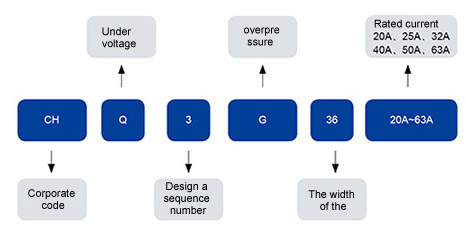

Selection Guide
Main Technical Parameters
Model Techical Parameters | CHQ3-G(36) | ||||
Rated ac voltage | 220V | ||||
frequency | 50Hz | ||||
Through the maximum current | 20A | 32A | 40A | 50A | 63A |
The maximum load power | 4.4KVA | 6.6KVA | 8.8KVA | 11KVA | 13.8KVA |
Overpressure action to cut off the values | 260-275VAC | ||||
Overpressure recovery value | 48±5VAC | ||||
Undervoltage action to cut off the values | 170±5VAC | ||||
Owe pressure recovery value | 183±5VAC | ||||
After power transmission delay | 1-5 minutes | ||||
Their power consumption | ≤2W | ||||
Electrical mechanical life | ≥9 Ten thousand times | ||||
shape | 85mm×36mm×66.5mm(Long * wide * high) | ||||
